TICKET REDEMPTION

NEW

BASKETBALL PRO Pound, score and enjoy with everyone!

Short url COPY http://www.andamiro.com/games/basketballpro

Tags BasketballPro Ticket

Dimensions 805mm x 988mm x 2,499mm
32" x 39" x 98"

Packing Dimensions 1,150mm x 900mm x 2,200mm
45" x 35" x 87"

Product Weight 220 kg / 485 lbs

Packing Weight 260 kg / 573 lbs

Power 300W

INQUIRY

PARTS INQUIRY

INQUIRE
CATEGORY OF QUESTIONS	TYPE OF QUESTIONS
AREA	AREA
COUNTRY	COUNTRY
Your Name (required)	Your Name (required)
Your Email (required)	Your Email (required)
Subject	Subject
Select Parts	Select Parts
Your Message	Your Message
FILE UPLOAD ##1	FILE UPLOAD ##1
FILE UPLOAD ##2	FILE UPLOAD ##2
CAPTCHA	CAPTCHA
NEWS LETTER	NEWS LETTER Yes! I would like to receive ANDAMIRO's newsletter.
CAPTCHA
I agree to the collection and use of personal information.

SUPPORT

Leaflets (1)
Manuals (3)
Document (2)
Trouble shooting
Video List (5)

FEATURES

Pound, score and enjoy with everyone!

Easy to understand and simple to play

Unique player interface is actual size of an official basketball

Air-powered ball hemisphere interface allows players to control all their shots

Make a basket for 3 points
– score 6 points in final 10 seconds

Baskets move up and down

2 player stations; side-by-side
competitive mode or single play

Compact footprint is perfect fit for bars and street stops.
And it will stand out in any FEC!

GALLERY

Sorry, this is not available at the moment.

PARTS

동기화 작업중입니다.
페이지를 이동하거나 닫으면 오류가 발생할 수 있습니다.

Total 128Parts

No.	Part name Part picture	Code Info	Part picture	Part Add

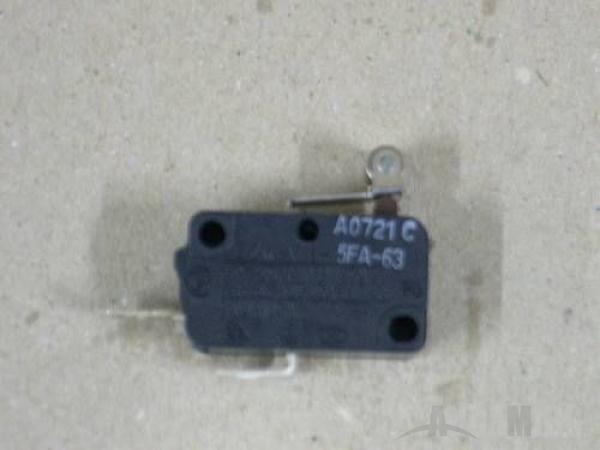

1	[] MICRO SWITCH_FOR BUTTON SZM-V16-FA-63(200G)	[] MICRO SWITCH_FOR BUTTON MELE0MIC013	Part picture
1	TERMINAL BLOCK 250V 10P UL_CE	TERMINAL BLOCK MELE0TEB003	Part picture
2	VOLUME KNOB CAP BLUE	VOLUME KNOB MELE0VOL007	Part picture
3	AC POWER CORD UL 125V_10A_SVT 3/18AWG 1.8M	AC POWER CORD UL MELE0ACP001	Part picture
4	AC POWER CORD 230V BF3 650_1.0_KKS-16A	AC POWER CORD MELE0ACP006	Part picture
5	AC POWER CORD 250V 16A KKP-4819R CE 1.8M	AC POWER CORD MELE0ACP008	Part picture
6	KEY ONLY 7001 2EA 1SET_WITH RING	KEY ONLY 7001 MZZZ0KEY035	Part picture
7	PLUG CUSHION RUBBER 공진 [KD-96R-9] 6MM	PLUG CUSHION RUBBER MCIR0RUB001	Part picture
8	방진고무볼트 001605 20_18_15.5_ M6	방진고무볼트 001605 MZZZ0RUB009	Part picture
9	KEY ASS'Y 7001 7001 ONLY BODY	KEY ASS'Y 7001 MZZZ0KEY076	Part picture
10	AC INPUT DAC-13H	AC INPUT MELE0SWI015	Part picture
11	FUSE 10A 0218010.MXP 250V,10A,4PA	FUSE 10A MELE0FUS018	Part picture
12	SETUP LCD PCB ASS'Y UNISYSTECH	SETUP LCD PCB ASS'Y AZZZ0PCB113	Part picture
13	MICRO SWITCH GSMV16_51A2	MICRO SWITCH MELE0MIC021	Part picture
14	SPEAKER MID 4.5"+TW1/2" 8Ω W-C-100 F BK	SPEAKER MZZZ0SPE021	Part picture
15	LED STICK BAR BRK 12MM 90도	LED STICK BAR BRK MELE0000022	Part picture
16	FND PCB ASS'Y 2941-2(ANGLE)	FND PCB ASS'Y AFND0PCB015	Part picture
17	LED BAR 12V ASS'Y 460MM	LED BAR 12V ASS'Y AZZZ0PCB124	Part picture
18	POWER SMPS LRS 100-24	POWER SMPS MELE0SMP080	Part picture
19	POWER SMPS LRS 50-12	POWER SMPS MELE0SMP082	Part picture
20	POWER SMPS LRS 150F-12	POWER SMPS MELE0SMP090	Part picture
21	POWER SMPS LRS 75-5	POWER SMPS MELE0SMP094	Part picture
22	NOISE FILTER RNS-2010	NOISE FILTER MELE0NOI009	Part picture
23	LED BAR 12V ASS'Y 710MM	LED BAR 12V ASS'Y AZZZ0PCB165	Part picture
24	ROCKER SWITCH R595KDF	ROCKER SWITCH MELE0SWI021	Part picture
1.24	[ROCKER SWITCH] ORING P5	[ROCKER SWITCH] ORING MZZZ0ORI006	Part picture
25	ORING P5	ORING MZZZ0ORI006	Part picture
26	BEARING 698ZZ	BEARING MZZZ0BEA122	Part picture
1.26	[BEARING] MAIN PCB ASS'Y CODE CHANGE ABSP0PCB019	[BEARING] MAIN PCB ASS'Y ABSP0PCB001	Part picture
27	SEN IO PCB ASS'Y CODE CHANGE ABSP0PCB020	SEN IO PCB ASS'Y ABSP0PCB002	Part picture
28	DC-MOTOR-PCB ASS'Y 65X 50 L6205 - 2CH	DC-MOTOR-PCB ASS'Y ABSP0PCB003	Part picture
29	STEPPING MOTOR-PCB ASS'Y 65X 50 TB6560AHQ - 1CH	STEPPING MOTOR-PCB ASS'Y ABSP0PCB004	Part picture
30	FND-EXT-IO-PCB ASS'Y 90X 50 16BIT EXT	FND-EXT-IO-PCB ASS'Y ABSP0PCB005	Part picture
31	BACKBOARD-LED235-PCB ASS'Y 235X 25 RGB 16EA	BACKBOARD-LED235-PCB ASS'Y ABSP0PCB006	Part picture
32	BACKBOARD-LED205-PCB ASS'Y 205X 25 RGB 16EA	BACKBOARD-LED205-PCB ASS'Y ABSP0PCB007	Part picture
33	2X TIME-LED60-PCB ASS'Y 80X 48 RED 16EA	2X TIME-LED60-PCB ASS'Y ABSP0PCB009	Part picture
34	4 IR-PCB ASS V2 55 X 23 SI5312/ST5811 4R	4 IR-PCB ASS V2 ABSP0PCB010	Part picture
35	18 IR-PCB ASS'Y 70 X 35 KEL-5008A/ST5811 18R	18 IR-PCB ASS'Y ABSP0PCB012	Part picture
36	FRAGILE STICKER 빌보드용	FRAGILE STICKER MZZZ0STI130	Part picture
1.36	[FRAGILE STICKER] TABLE AIR INLET ACR .	[FRAGILE STICKER] TABLE AIR INLET ACR MBSP0ACR006	Part picture
2.36	[FRAGILE STICKER] TABLE UNDER LED ACR .	[FRAGILE STICKER] TABLE UNDER LED ACR MBSP0ACR008	Part picture
37	MOTOR K6DS30N2-SA_60 DC24V 30W_2000RPM_2.5	MOTOR MZZZ0MOT143	Part picture
38	LM BEARING BUSH LM12LUU	LM BEARING BUSH MZZZ0BEA127	Part picture
1.38	[LM BEARING BUSH] SIDE SHEET-L1 .	[LM BEARING BUSH] SIDE SHEET-L1 MBSP0SHE001	Part picture
2.38	[LM BEARING BUSH] SIDE SHEET-L2 .	[LM BEARING BUSH] SIDE SHEET-L2 MBSP0SHE002	Part picture
3.38	[LM BEARING BUSH] SIDE SHEET-R1 .	[LM BEARING BUSH] SIDE SHEET-R1 MBSP0SHE003	Part picture
4.38	[LM BEARING BUSH] SIDE SHEET-R2 .	[LM BEARING BUSH] SIDE SHEET-R2 MBSP0SHE004	Part picture
5.38	[LM BEARING BUSH] 1P FRONT TICKET DOOR SHEET .	[LM BEARING BUSH] 1P FRONT TICKET DOOR SHEET MBSP0SHE005	Part picture
6.38	[LM BEARING BUSH] 2P FRONT TICKET DOOR SHEET .	[LM BEARING BUSH] 2P FRONT TICKET DOOR SHEET MBSP0SHE006	Part picture
7.38	[LM BEARING BUSH] FRONTDOOR SHEET .	[LM BEARING BUSH] FRONTDOOR SHEET MBSP0SHE007	Part picture
8.38	[LM BEARING BUSH] WALL SHEET .	[LM BEARING BUSH] WALL SHEET MBSP0SHE008	Part picture
9.38	[LM BEARING BUSH] BUTTON SHEET .	[LM BEARING BUSH] BUTTON SHEET MBSP0SHE010	Part picture
10.38	[LM BEARING BUSH] AIR CYLINDER PIPE ACRYL PIPE Φ35 3.0T	[LM BEARING BUSH] AIR CYLINDER PIPE MBSP0PRO001	Part picture
11.38	[LM BEARING BUSH] BALL ROTATE MOTOR SHAFT AL6061	[LM BEARING BUSH] BALL ROTATE MOTOR SHAFT MBSP0PRO002	Part picture
12.38	[LM BEARING BUSH] BALL SCREW BEARING HOUSING AL6061	[LM BEARING BUSH] BALL SCREW BEARING HOUSING MBSP0PRO003	Part picture
39	BALL SHOOTER PIPE FIX BKT AL6061	BALL SHOOTER PIPE FIX BKT MBSP0PRO004	Part picture
1.39	[BALL SHOOTER PIPE FIX BKT] BALL TARGET SHAFT AL6061	[BALL SHOOTER PIPE FIX BKT] BALL TARGET SHAFT MBSP0PRO005	Part picture
2.39	[BALL SHOOTER PIPE FIX BKT] BASKET MOVING SPACER S45C 열처리 연마봉	[BALL SHOOTER PIPE FIX BKT] BASKET MOVING SPACER MBSP0PRO009	Part picture
40	BALL ROTATE CROSS LINE 1P 색상 : RED	BALL ROTATE CROSS LINE 1P MBSP0SPR002	Part picture
1.40	[BALL ROTATE CROSS LINE 1P] GOAL POST NET SPRING .	[BALL ROTATE CROSS LINE 1P] GOAL POST NET SPRING MBSP0SPR003	Part picture
41	PLAYER ZONE BARRIER SPRING .	PLAYER ZONE BARRIER SPRING MBSP0SPR004	Part picture
42	BALL SHOOTER SPONGE .	BALL SHOOTER SPONGE MBSP0SPO001	Part picture
43	BALL ROTATE CROSS LINE 2P 색상 : BLUE	BALL ROTATE CROSS LINE 2P MBSP0SPR005	Part picture
1.43	[BALL ROTATE CROSS LINE 2P] TOP FRAME LED PC PC-3.0T(광확산)	[BALL ROTATE CROSS LINE 2P] TOP FRAME LED PC MBSP0ACR009	Part picture
44	PRO ASS 일반가공_10종 1~3 5 8 9 14 17 A10 A11	PRO ASS 일반가공_10종 ABSP0ASS009	Part picture
1.44	[PRO ASS 일반가공_10종] CYLINDER SPACER .	[PRO ASS 일반가공_10종] CYLINDER SPACER MBSP0PRO011	Part picture
1.44.1	[PRO ASS 일반가공_10종] MAIN BOARD HEATSINK 50503T	[PRO ASS 일반가공_10종] MAIN BOARD HEATSINK MBSP0PRO012	Part picture
1.44.2	[PRO ASS 일반가공_10종] MAIN BOARD HEATSINK 50503T	[PRO ASS 일반가공_10종] MAIN BOARD HEATSINK MBSP0PRO012	Part picture
1.44.3	[PRO ASS 일반가공_10종] BALL SHOOTER PIPE FIX UPPER BKT ASS'Y CODE ABSP0ASS059	[PRO ASS 일반가공_10종] BALL SHOOTER PIPE FIX UPPER BKT MBSP0PRO013	Part picture
1.44.4	[PRO ASS 일반가공_10종] BALL SHOOTER PIPE FIX UPPER BKT ASS'Y CODE ABSP0ASS059	[PRO ASS 일반가공_10종] BALL SHOOTER PIPE FIX UPPER BKT MBSP0PRO013	Part picture
2.44	[PRO ASS 일반가공_10종] CYLINDER SPRING COVER ACETAL_10.6 .	[PRO ASS 일반가공_10종] CYLINDER SPRING COVER ACETAL_10.6 MBSP0PRO014	Part picture
45	CYLINDER SPRING COVER ACETAL_10.6 .	CYLINDER SPRING COVER ACETAL_10.6 MBSP0PRO014	Part picture
1.45	[CYLINDER SPRING COVER ACETAL_10.6] BALL ROTATE CROSS LINE WASHER .	[CYLINDER SPRING COVER ACETAL_10.6] BALL ROTATE CROSS LINE WASHER MBSP0PRO017	Part picture
2.45	[CYLINDER SPRING COVER ACETAL_10.6] BALL SHOOTER PIPE ASS'Y UPPER 10 13	[CYLINDER SPRING COVER ACETAL_10.6] BALL SHOOTER PIPE ASS'Y UPPER ABSP0ASS010	Part picture
3.45	[CYLINDER SPRING COVER ACETAL_10.6] BALL SHOOTER PIPE ASS'Y LOWER 4 10	[CYLINDER SPRING COVER ACETAL_10.6] BALL SHOOTER PIPE ASS'Y LOWER ABSP0ASS011	Part picture
4.45	[CYLINDER SPRING COVER ACETAL_10.6] BILLBOARD MAIN PRINT .	[CYLINDER SPRING COVER ACETAL_10.6] BILLBOARD MAIN PRINT ABSP0ACP001	Part picture
5.45	[CYLINDER SPRING COVER ACETAL_10.6] CPU PCB ASS'Y BASKET	[CYLINDER SPRING COVER ACETAL_10.6] CPU PCB ASS'Y ABSP0PCB013	Part picture
6.45	[CYLINDER SPRING COVER ACETAL_10.6] HIGH SCORE PRINT .	[CYLINDER SPRING COVER ACETAL_10.6] HIGH SCORE PRINT ABSP0ACP002	Part picture
7.45	[CYLINDER SPRING COVER ACETAL_10.6] SCORE BOARD PRINT .	[CYLINDER SPRING COVER ACETAL_10.6] SCORE BOARD PRINT ABSP0ACP003	Part picture
8.45	[CYLINDER SPRING COVER ACETAL_10.6] BASKET MOVING BACKBOARD PRINT .	[CYLINDER SPRING COVER ACETAL_10.6] BASKET MOVING BACKBOARD PRINT ABSP0ACP004	Part picture
9.45	[CYLINDER SPRING COVER ACETAL_10.6] HOW TO PLAY PRINT-L .	[CYLINDER SPRING COVER ACETAL_10.6] HOW TO PLAY PRINT-L ABSP0ACP005	Part picture
10.45	[CYLINDER SPRING COVER ACETAL_10.6] TABLE MAIN PRINT .	[CYLINDER SPRING COVER ACETAL_10.6] TABLE MAIN PRINT ABSP0ACP007	Part picture
11.45	[CYLINDER SPRING COVER ACETAL_10.6] TICKETS VALUE PRINT .	[CYLINDER SPRING COVER ACETAL_10.6] TICKETS VALUE PRINT ABSP0ACP008	Part picture
46	CONTROL PANEL COVER ACRYL .	CONTROL PANEL COVER ACRYL ABSP0ACP009	Part picture
1.46	[CONTROL PANEL COVER ACRYL] CONTROL PANEL COVER ACRYL .	[CONTROL PANEL COVER ACRYL] CONTROL PANEL COVER ACRYL ABSP0ACP009	Part picture
47	BASKETBALL COURT .	BASKETBALL COURT ABSP0ACP010	Part picture
1.47	[BASKETBALL COURT] BASKETBALL COURT .	[BASKETBALL COURT] BASKETBALL COURT ABSP0ACP010	Part picture
48	GOAL POST ASS'Y .	GOAL POST ASS'Y ABSP0ASS012	Part picture
1.48	[GOAL POST ASS'Y] 1P FRONT TICKET DOOR SHEET D&B .	[GOAL POST ASS'Y] 1P FRONT TICKET DOOR SHEET D&B MBSP0SHE012	Part picture
2.48	[GOAL POST ASS'Y] 2P FRONT TICKET DOOR SHEET D&B .	[GOAL POST ASS'Y] 2P FRONT TICKET DOOR SHEET D&B MBSP0SHE013	Part picture
3.48	[GOAL POST ASS'Y] FRONTDOOR SHEET D&B .	[GOAL POST ASS'Y] FRONTDOOR SHEET D&B MBSP0SHE014	Part picture
4.48	[GOAL POST ASS'Y] BILLBOARD MAIN PRINT D&B	[GOAL POST ASS'Y] BILLBOARD MAIN PRINT D&B ABSP0ACP011	Part picture
49	COURT WASHER .	COURT WASHER MBSP0PRO019	Part picture
50	BALL SCREW V2_SFU1204 직경12MM 리드4MM 길이400MM	BALL SCREW MZZZ0BSC002	Part picture
51	BASKET BALL 5CM W10~11G	BASKET BALL MZZZ0BLL012	Part picture
52	MAIN PCB ASS'Y CODE CHANGE ABSP0ASS074	MAIN PCB ASS'Y ABSP0ASS041	Part picture
1.52	[MAIN PCB ASS'Y ] SETUP PANEL BKT PET COVER FUN PRI+ACR	[MAIN PCB ASS'Y ] SETUP PANEL BKT PET COVER FUN MBSP0ACR012	Part picture
53	BASKET BALL PUSH RUBBER ASS'Y V2	BASKET BALL PUSH RUBBER ASS'Y ABSP0ASS044	Part picture
54	COUPLING CR050 ASS'Y 8*8_M5_TAB120_M3_18.4	COUPLING CR050 ASS'Y AZZZ0COP003	Part picture
55	BALL SHOOTER GASKET .	BALL SHOOTER GASKET MBSP0PLA001	Part picture
1.55	[BALL SHOOTER GASKET] BALL TARGET SHAFT REV2 .	[BALL SHOOTER GASKET] BALL TARGET SHAFT REV2 MBSP0PRO020	Part picture
1.55.1	[BALL SHOOTER GASKET] BALL SHOOTER BUSH REV1 .	[BALL SHOOTER GASKET] BALL SHOOTER BUSH REV1 MBSP0PRO021	Part picture
1.55.2	[BALL SHOOTER GASKET] BALL SHOOTER BUSH REV1 .	[BALL SHOOTER GASKET] BALL SHOOTER BUSH REV1 MBSP0PRO021	Part picture
1.55.3	[BALL SHOOTER GASKET] BALL SHOOTER BUSH REV1 .	[BALL SHOOTER GASKET] BALL SHOOTER BUSH REV1 MBSP0PRO021	Part picture
56	BALL SHOOTER BUSH REV1 .	BALL SHOOTER BUSH REV1 MBSP0PRO021	Part picture
1.56.3	[BALL SHOOTER BUSH REV1] CYLINDER SPRING REV1 .	[BALL SHOOTER BUSH REV1] CYLINDER SPRING REV1 MBSP0SPR007	Part picture
2.56.3	[BALL SHOOTER BUSH REV1] AIR CYLINDER PIPE REV1 ACRYL PIPE Φ35 3.0T	[BALL SHOOTER BUSH REV1] AIR CYLINDER PIPE REV1 MBSP0PRO022	Part picture
3.56.3	[BALL SHOOTER BUSH REV1] CYLINDER SPRING BLOCK URETAN URETAN	[BALL SHOOTER BUSH REV1] CYLINDER SPRING BLOCK URETAN MBSP0PRO023	Part picture
57	ASS'Y-BALL SHOOTER CYLINDER V2	ASS'Y-BALL SHOOTER CYLINDER ABSP0ASS055	Part picture
1.57.3	[ASS'Y-BALL SHOOTER CYLINDER ] BALL SHOOTER PIPE ASS'Y LOWER V2 4 21	[ASS'Y-BALL SHOOTER CYLINDER ] BALL SHOOTER PIPE ASS'Y LOWER ABSP0ASS057	Part picture
2.57.3	[ASS'Y-BALL SHOOTER CYLINDER ] BALL SHOOTER PIPE ASS'Y UPPER V2 13 21	[ASS'Y-BALL SHOOTER CYLINDER ] BALL SHOOTER PIPE ASS'Y UPPER ABSP0ASS059	Part picture
58	BALL SHOOTER PIPE ASS'Y UPPER V2 13 21	BALL SHOOTER PIPE ASS'Y UPPER ABSP0ASS059	Part picture
59	VOLUME PCB ASS'Y 1 VOLUME	VOLUME PCB ASS'Y AHM20PCB016	Part picture
1.59.3	[VOLUME PCB ASS'Y] MICRO SW L R SZM-V16-5FA-63	[VOLUME PCB ASS'Y] MICRO SW L R MWIC0PAR022	Part picture
60	BACKBOARD-LED70-PCB ASS'Y 70X 33 RGB 5EA	BACKBOARD-LED70-PCB ASS'Y ABSP0PCB008	Part picture
1.60.3	[BACKBOARD-LED70-PCB ASS'Y] GOAL POST .	[BACKBOARD-LED70-PCB ASS'Y] GOAL POST MBSP0MEP003	Part picture
61	BUTTON SWITCH CODE CHANGE AZZZ0BUT011	BUTTON SWITCH MZZZ0BUT054	Part picture
62	STEPPING MOTOR 4S56Q-04054S	STEPPING MOTOR MZZZ0MOT144	Part picture
63	PHOTO INT-1 PCB ASS'Y ANGLE TYPE	PHOTO INT-1 PCB ASS'Y AZZZ0PCB103	Part picture
64	HARNESS_CF9_05_07_360 .	HARNESS_CF9_05_07_360 ABSP0HAN017	Part picture
1.64.3	[HARNESS_CF9_05_07_360] BUTTON SWITCH 60HR WITHOUT HOLDER	[HARNESS_CF9_05_07_360] BUTTON SWITCH MZZZ0BUT127	Part picture
65	BUTTON SWITCH AMIPB-60HR-W12D	BUTTON SWITCH AZZZ0BUT011	Part picture
1.65.3	[BUTTON SWITCH] HOLDER ASS'Y LED 포함	[BUTTON SWITCH] HOLDER ASS'Y MZZZ0BUT128	Part picture
2.65.3	[BUTTON SWITCH] MAIN PCB ASS'Y BASKETBALL_SMW250_14	[BUTTON SWITCH] MAIN PCB ASS'Y ABSP0PCB019	Part picture
66	SEN IO PCB ASS'Y IR SENSOR IO PCB_SMW250_14	SEN IO PCB ASS'Y ABSP0PCB020	Part picture
67	MAIN PCB ASS'Y WITH CPU_SMW250_14	MAIN PCB ASS'Y ABSP0ASS074	Part picture
68	WEB ACRYL PART BSP WEB	WEB ACRYL PART ABSP0PAT034	Part picture
69	WEB SHEET PART BSP WEB	WEB SHEET PART ABSP0PAT035	Part picture
