Andamiro Co., Ltd.

TICKET REDEMPTION BASEBALL PRO Grand Slam Collections!

Short url COPY http://www.andamiro.com/games/baseballpro

Tags BaseballPro Ticket

Dimensions 1,097mm x 2,352mm x 2,812mm
43" x 93" x 111"

Packing Dimensions 1,150mm x 2,280mm x 2,240mm
45" x 90" x 88"

Product Weight 420 kg / 926 lbs

Packing Weight 450 kg / 992 lbs

Power 160W

INQUIRY

PARTS INQUIRY

INQUIRE
CATEGORY OF QUESTIONS	TYPE OF QUESTIONS
AREA	AREA
COUNTRY	COUNTRY
Your Name (required)	Your Name (required)
Your Email (required)	Your Email (required)
Subject	Subject
Select Parts	Select Parts
Your Message	Your Message
FILE UPLOAD ##1	FILE UPLOAD ##1
FILE UPLOAD ##2	FILE UPLOAD ##2
CAPTCHA	CAPTCHA
NEWS LETTER	NEWS LETTER Yes! I would like to receive ANDAMIRO's newsletter.
CAPTCHA
I agree to the collection and use of personal information.

SUPPORT

Leaflets (2)
Manuals (1)
Document (1)
Trouble shooting
Video List (0)

FEATURES

- MOVING HOME RUN TARGET

- Miniature Baseball Bat Interface

- HIT or OUT TARGETS

- AUTO Mechanical Pitcher

GALLERY

Sorry, this is not available at the moment.

PARTS

동기화 작업중입니다.
페이지를 이동하거나 닫으면 오류가 발생할 수 있습니다.

Total 152Parts

No.	Part name Part picture	Code Info	Part picture	Part Add

1	[] MICRO SWITCH_FOR BUTTON SZM-V16-FA-63(200G)	[] MICRO SWITCH_FOR BUTTON MELE0MIC013	Part picture
1	TERMINAL BLOCK KTB1-020 6P UL_CE	TERMINAL BLOCK MELE0TEB001	Part picture
2	VOLUME KNOB CAP BLUE	VOLUME KNOB MELE0VOL007	Part picture
3	AC POWER CORD UL 125V_10A_SVT 3/18AWG 1.8M	AC POWER CORD UL MELE0ACP001	Part picture
4	AC POWER CORD 250V 16A KKP-4819R CE 1.8M	AC POWER CORD MELE0ACP008	Part picture
5	MICRO SWITCH CNR-05H-03 ZIPPY-FOR COIN	MICRO SWITCH MELE0MIC002	Part picture
6	KEY ONLY 7001 2EA 1SET_WITH RING	KEY ONLY 7001 MZZZ0KEY035	Part picture
7	KEY ONLY 6001 2EA 1SET _WITH RING	KEY ONLY 6001 MZZZ0KEY014	Part picture
8	PHOTO INT-2 PCB ASS'Y WINNER,WON,CIR공용	PHOTO INT-2 PCB ASS'Y AWIW0PCB009	Part picture
9	PLUG CUSHION RUBBER 공진 [KD-96R-9] 6MM	PLUG CUSHION RUBBER MCIR0RUB001	Part picture
10	BUTTON SWITCH TICKET AM1PB-26SH R12D	BUTTON SWITCH MMUM0BUT002	Part picture
11	PUSH BUTTON SWITCH DS-412R ROSH	PUSH BUTTON SWITCH MELE0PUS006	Part picture
12	BEARING 638ZZ	BEARING MZZZ0BEA064	Part picture
1.12	[BEARING] KEY ASS'Y 6001 6001 ONLY BODY	[BEARING] KEY ASS'Y 6001 MZZZ0KEY075	Part picture
13	AC INPUT DAC-13H	AC INPUT MELE0SWI015	Part picture
14	HAND BOLT M4, PKB4 4*10L	HAND BOLT MZZZ0PLA030	Part picture
15	GROUND CONNECTION STICKER 접지	GROUND CONNECTION STICKER MSUP0STI002	Part picture
16	FUSE 10A 0218010.MXP 250V,10A,4PA	FUSE 10A MELE0FUS018	Part picture
17	SETUP LCD PCB ASS'Y UNISYSTECH	SETUP LCD PCB ASS'Y AZZZ0PCB113	Part picture
18	SPEAKER MID 4.5"+TW1/2" 8Ω W-C-100 F BK	SPEAKER MZZZ0SPE021	Part picture
19	SPONGE_BALL_GUIDE_CLB 10T, BLACK	SPONGE_BALL_GUIDE_CLB MCLB0SPO001	Part picture
20	ROUND BAR PULL RBP-3-4(KA1232)	ROUND BAR PULL MZZZ0HAD001	Part picture
21	DISPLAY COPY PCB ASS'Y .	DISPLAY COPY PCB ASS'Y AGST0PCB008	Part picture
22	3M 스티커제거제 PIC10 295G	3M 스티커제거제 MZZZ0ETC017	Part picture
23	FND PCB ASS'Y 2029-2(STRAIGHT)	FND PCB ASS'Y AFND0PCB001	Part picture
24	FND PCB ASS'Y 2941-4 (STRAIGHT)	FND PCB ASS'Y AFND0PCB004	Part picture
25	FND PCB ASS'Y 3856-2(STRAIGHT)	FND PCB ASS'Y AFND0PCB006	Part picture
26	FND PCB ASS'Y 4870-2 (STRAIGHT)	FND PCB ASS'Y AFND0PCB008	Part picture
27	LED STICK BAR BRK 12MM 90도	LED STICK BAR BRK MELE0000022	Part picture
28	COIN SELECTOR TW-333_WITHOUT FND	COIN SELECTOR MZZZ0COS045	Part picture
1.28	[COIN SELECTOR] ELEVATOR BRAKE ACRYL .	[COIN SELECTOR] ELEVATOR BRAKE ACRYL MBAP0ACR008	Part picture
2.28	[COIN SELECTOR] CENTER RAIL ACRYL .	[COIN SELECTOR] CENTER RAIL ACRYL MBAP0ACR012	Part picture
3.28	[COIN SELECTOR] CONTROLLER SAFETY COVER ACRYL .	[COIN SELECTOR] CONTROLLER SAFETY COVER ACRYL MBAP0ACR015	Part picture
4.28	[COIN SELECTOR] HR FRONT ACRYL .	[COIN SELECTOR] HR FRONT ACRYL MBAP0ACR017	Part picture
5.28	[COIN SELECTOR] DROP FENCE ACRYL	[COIN SELECTOR] DROP FENCE ACRYL MBAP0ACR018	Part picture
6.28	[COIN SELECTOR] ELEVATOR BODY COVER ACRYL-L .	[COIN SELECTOR] ELEVATOR BODY COVER ACRYL-L MBAP0ACR019	Part picture
7.28	[COIN SELECTOR] ELEVATOR BODY COVER ACRYL-R .	[COIN SELECTOR] ELEVATOR BODY COVER ACRYL-R MBAP0ACR020	Part picture
8.28	[COIN SELECTOR] ELEVATOR CASE COVER ACRYL .	[COIN SELECTOR] ELEVATOR CASE COVER ACRYL MBAP0ACR021	Part picture
9.28	[COIN SELECTOR] ELEVATOR RAIL FRONT ACRYL L R 1 SET	[COIN SELECTOR] ELEVATOR RAIL FRONT ACRYL MBAP0ACR024	Part picture
10.28	[COIN SELECTOR] ELEVATOR RAIL REAR ACRYL .	[COIN SELECTOR] ELEVATOR RAIL REAR ACRYL MBAP0ACR025	Part picture
11.28	[COIN SELECTOR] ELEVATOR RAIL SIDE ACRYL L-R	[COIN SELECTOR] ELEVATOR RAIL SIDE ACRYL L-R MBAP0ACR027	Part picture
12.28	[COIN SELECTOR] SIDE FRAME LIGHTING ACRYL 대칭	[COIN SELECTOR] SIDE FRAME LIGHTING ACRYL MBAP0ACR028	Part picture
13.28	[COIN SELECTOR] SIDE RAIL ACRYL	[COIN SELECTOR] SIDE RAIL ACRYL MBAP0ACR029	Part picture
14.28	[COIN SELECTOR] SIDE WINDOW	[COIN SELECTOR] SIDE WINDOW MBAP0ACR030	Part picture
15.28	[COIN SELECTOR] SPOT ACRYL .	[COIN SELECTOR] SPOT ACRYL MBAP0ACR031	Part picture
29	BAT SPRING_4PI PW 4PI	BAT SPRING_4PI MBAP0SPR001	Part picture
30	R SIDE LIGHTING LED PCB ASS'Y BGR	R SIDE LIGHTING LED PCB ASS'Y ABAP0PCB001	Part picture
31	ELEVATOR SENSOR PCB ASS'Y 2SENSOR	ELEVATOR SENSOR PCB ASS'Y ABAP0PCB002	Part picture
32	OUT LED PCB ASS'Y WHITE	OUT LED PCB ASS'Y ABAP0PCB003	Part picture
33	MOUND LED PCB ASS'Y BGR	MOUND LED PCB ASS'Y ABAP0PCB004	Part picture
34	SBO LED PCB ASS'Y BGR	SBO LED PCB ASS'Y ABAP0PCB005	Part picture
35	L SIDE LIGHTING LED PCB ASS'Y BGR	L SIDE LIGHTING LED PCB ASS'Y ABAP0PCB006	Part picture
1.35	[L SIDE LIGHTING LED PCB ASS'Y] BAT BUSH .	[L SIDE LIGHTING LED PCB ASS'Y] BAT BUSH MBAP0PRO001	Part picture
2.35	[L SIDE LIGHTING LED PCB ASS'Y] BAT ROD SHAFT .	[L SIDE LIGHTING LED PCB ASS'Y] BAT ROD SHAFT MBAP0PRO004	Part picture
3.35	[L SIDE LIGHTING LED PCB ASS'Y] WELD-CONTROLLER SHAFT .	[L SIDE LIGHTING LED PCB ASS'Y] WELD-CONTROLLER SHAFT MBAP0PRO005	Part picture
4.35	[L SIDE LIGHTING LED PCB ASS'Y] CONTROLLER LOWER HOLDER .	[L SIDE LIGHTING LED PCB ASS'Y] CONTROLLER LOWER HOLDER MBAP0PRO006	Part picture
5.35	[L SIDE LIGHTING LED PCB ASS'Y] BILLBOARD LOGO FIX SHAFT .	[L SIDE LIGHTING LED PCB ASS'Y] BILLBOARD LOGO FIX SHAFT MBAP0PRO007	Part picture
6.35	[L SIDE LIGHTING LED PCB ASS'Y] WELD-CONTROLLER BEARING HOUSING .	[L SIDE LIGHTING LED PCB ASS'Y] WELD-CONTROLLER BEARING HOUSING MBAP0PRO008	Part picture
7.35	[L SIDE LIGHTING LED PCB ASS'Y] CONTROLLER UPPER HOLDER .	[L SIDE LIGHTING LED PCB ASS'Y] CONTROLLER UPPER HOLDER MBAP0PRO009	Part picture
8.35	[L SIDE LIGHTING LED PCB ASS'Y] WELD-HR ROTATOR .	[L SIDE LIGHTING LED PCB ASS'Y] WELD-HR ROTATOR MBAP0PRO014	Part picture
9.35	[L SIDE LIGHTING LED PCB ASS'Y] ELEVATOR DISK SHAFT .	[L SIDE LIGHTING LED PCB ASS'Y] ELEVATOR DISK SHAFT MBAP0PRO017	Part picture
10.35	[L SIDE LIGHTING LED PCB ASS'Y] ELEVATOR SPACER SHAFT .	[L SIDE LIGHTING LED PCB ASS'Y] ELEVATOR SPACER SHAFT MBAP0PRO018	Part picture
11.35	[L SIDE LIGHTING LED PCB ASS'Y] HR SHAFT BUSHING .	[L SIDE LIGHTING LED PCB ASS'Y] HR SHAFT BUSHING MBAP0PRO019	Part picture
36	LED STICK BAR BRK 12MM 45도	LED STICK BAR BRK MELE0000023	Part picture
1.36	[LED STICK BAR BRK] FRONT FRAME COVER ACRYL-R COVER	[LED STICK BAR BRK] FRONT FRAME COVER ACRYL-R COVER MBAP0ACR033	Part picture
2.36	[LED STICK BAR BRK] FRONT FRAME COVER ACRYL-R .	[LED STICK BAR BRK] FRONT FRAME COVER ACRYL-R MBAP0ACR034	Part picture
37	ORING AS568A-#204 OD16 D9 3.53PI	ORING MZZZ0ORI003	Part picture

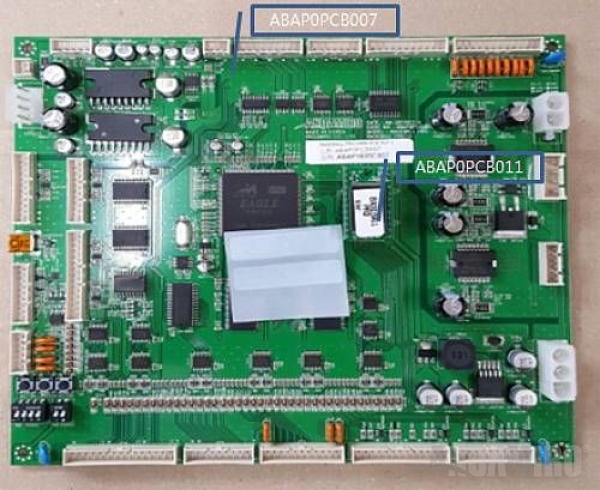

1.37	[ORING] BASEBALL PRO IO PCB ASS'Y EAGLE CHIP	[ORING] BASEBALL PRO IO PCB ASS'Y ABAP0PCB007	Part picture
38	ROCKER SWITCH T-125 4P	ROCKER SWITCH MELE0SWI004	Part picture
1.38	[ROCKER SWITCH] WELD-BAT BEARING HOUSING .	[ROCKER SWITCH] WELD-BAT BEARING HOUSING MBAP0PRO022	Part picture
2.38	[ROCKER SWITCH] WELD-BAT SHAFT .	[ROCKER SWITCH] WELD-BAT SHAFT MBAP0PRO024	Part picture
39	BAT SPRING_3.5PI PW 3.5PI	BAT SPRING_3.5PI MBAP0SPR003	Part picture
1.39	[BAT SPRING_3.5PI] BAT CONNECT SHAFT .	[BAT SPRING_3.5PI] BAT CONNECT SHAFT MBAP0PRO025	Part picture
2.39	[BAT SPRING_3.5PI] BAT .	[BAT SPRING_3.5PI] BAT MBAP0PRO026	Part picture
3.39	[BAT SPRING_3.5PI] CONTROLLER CONNECT SHAFT .	[BAT SPRING_3.5PI] CONTROLLER CONNECT SHAFT MBAP0PRO027	Part picture
4.39	[BAT SPRING_3.5PI] HR BALL CASE ACRYL .	[BAT SPRING_3.5PI] HR BALL CASE ACRYL MBAP0ACR035	Part picture
40	SPOT LED PCB ASS'Y WHITE	SPOT LED PCB ASS'Y ABAP0PCB008	Part picture
1.40	[SPOT LED PCB ASS'Y] COIN BOX SMALL 200198107 BLACK	[SPOT LED PCB ASS'Y] COIN BOX SMALL MDRE0PLA007	Part picture
41	BEARING F6800ZZ, D10 D19 B5	BEARING MZZZ0BEA092	Part picture
42	LED BAR 12V ASS'Y 460MM	LED BAR 12V ASS'Y AZZZ0PCB124	Part picture
43	ATX JOIN 2 OZ PCB ASS'Y SPONGE BOB PINEAPPLE	ATX JOIN 2 OZ PCB ASS'Y ASBP0PCB010	Part picture
44	LED BAR 12V ASS'Y 910MM	LED BAR 12V ASS'Y AZZZ0PCB128	Part picture
45	HOLDER ASS'Y LED포함	HOLDER ASS'Y MZZZ0BUT103	Part picture
46	FND PCB ASS'Y 90120-4(STRAIGHT)	FND PCB ASS'Y AFND0PCB024	Part picture
47	BAT 46CM_SILVER(구4OCM)	BAT MZZZ0000577	Part picture
48	CABLE CHAIN KJP018-1B-R50_25LINK 한쪽끝은 반대	CABLE CHAIN MZZZ0CBC010	Part picture
49	LM BEARING SL12UU_THC 50*70	LM BEARING MZZZ0BEA106	Part picture
50	BALL BASEBALL PRO_25PI	BALL MZZZ0BLL003	Part picture
51	MOTOR KGE-0308-3657-NB1 DC12V 5000RPM	MOTOR MZZZ0MOT099	Part picture
1.51	[MOTOR] TOP DECO PANEL SHEET-R .	[MOTOR] TOP DECO PANEL SHEET-R MBAP0SHE009	Part picture
2.51	[MOTOR] TOP DECO PANEL SHEET-L .	[MOTOR] TOP DECO PANEL SHEET-L MBAP0SHE010	Part picture
3.51	[MOTOR] LOWER DECO PANEL SHEET-L .	[MOTOR] LOWER DECO PANEL SHEET-L MBAP0SHE011	Part picture
4.51	[MOTOR] LOWER DECO PANEL SHEET-R .	[MOTOR] LOWER DECO PANEL SHEET-R MBAP0SHE012	Part picture
5.51	[MOTOR] FRONT DOOR PANEL SHEET .	[MOTOR] FRONT DOOR PANEL SHEET MBAP0SHE013	Part picture
6.51	[MOTOR] MAIN CASE CONNECT PANEL SHEET-L .	[MOTOR] MAIN CASE CONNECT PANEL SHEET-L MBAP0SHE014	Part picture
7.51	[MOTOR] MAIN CASE CONNECT PANEL SHEET-R .	[MOTOR] MAIN CASE CONNECT PANEL SHEET-R MBAP0SHE015	Part picture
52	WARRANTY STICKER 1년품질보증	WARRANTY STICKER MZZZ0STI085	Part picture
53	ROD BEARING JM10_STS304(M1숫놈)	ROD BEARING MZZZ0BEA108	Part picture
54	ORING P3 D2.9 1.9T	ORING MZZZ0ORI004	Part picture
1.54	[ORING] MEMORY PCB ASS'Y BASEBALL	[ORING] MEMORY PCB ASS'Y ABAP0PCB011	Part picture
55	HR SENSOR PCB ASS'Y IR_TRANS/RECEIVE	HR SENSOR PCB ASS'Y ABAP0PCB012	Part picture
56	DROP LED PCB ASS'Y BGR	DROP LED PCB ASS'Y ABAP0PCB013	Part picture
57	MOUND CENTER LED PCB ASS'Y BGR	MOUND CENTER LED PCB ASS'Y ABAP0PCB014	Part picture
58	GAS SPRING BALL TYPE GS22*761 15KG	GAS SPRING BALL TYPE MZZZ0SHO008	Part picture
59	BEARING CUSHION MOLD .	BEARING CUSHION MOLD MBAP0PLA001	Part picture
60	BAT CUSHION MOLD .	BAT CUSHION MOLD MBAP0PLA002	Part picture
61	BEARING CUSHION MOLD-STOPPER .	BEARING CUSHION MOLD-STOPPER MBAP0PLA003	Part picture
62	PRO ASS'Y 17 PARTS 외2종남광발송	PRO ASS'Y ABAP0PRO001	Part picture
63	SPRING SM12060020 D12 D6 L20	SPRING MZZZ0SPR032	Part picture
64	TICKET DISPENSER CLE CL-002Q_270 HIGH SPEED	TICKET DISPENSER MZZZ0TID010	Part picture
65	MOTOR KGE-0615-3657-NB1 DC12V 6000RPM	MOTOR MZZZ0MOT100	Part picture
66	BP BALL SENSOR PCB ASS'Y 2SENSOR	BP BALL SENSOR PCB ASS'Y ABAP0PCB015	Part picture
67	FND PCB ASS'Y 2941-3-2C(WCN)(STAIGHT)	FND PCB ASS'Y AFND0PCB026	Part picture
68	ETL SERIAL SRICKER BAP	ETL SERIAL SRICKER MBAP0STI003	Part picture
69	WARNING STICKER (ETL 유리 파손) 110*35	WARNING STICKER (ETL 유리 파손) MZZZ0STI088	Part picture
70	WARNING STICKER_POWER BOX ETL 90*45	WARNING STICKER_POWER BOX ETL MZZZ0STI089	Part picture
71	FUSE LABEL(T10A-250V) ETL 75*50	FUSE LABEL(T10A-250V) ETL MZZZ0STI090	Part picture
72	WARNING SHEET ETL 70*50	WARNING SHEET MZZZ0STI091	Part picture
73	BALL SIZE NOTICE STICKER 110*35 볼사이즈 주의	BALL SIZE NOTICE STICKER MBAP0STI004	Part picture
74	NOTICE STICKER 100*35 10초후전원ON	NOTICE STICKER MZZZ0STI092	Part picture
1.74	[NOTICE STICKER] BUTTON SHEET .	[NOTICE STICKER] BUTTON SHEET MBAP0SHE027	Part picture
75	ATX POWER SUPPLY CODE CHANGE MELE0SMP149	ATX POWER SUPPLY MELE0SMP099	Part picture
1.75	[ATX POWER SUPPLY ] COUPLING JOC30(D1-8 D2-8)	[ATX POWER SUPPLY ] COUPLING MBAJ0PRO011	Part picture
76	COIN BOX ASS WITH 6001 SMALL 200198107	COIN BOX ASS WITH 6001 AZZZ0ASS002	Part picture
77	BASEBALL PRO IO PCB ASS'Y WITH CPU	BASEBALL PRO IO PCB ASS'Y ABAP0ASS005	Part picture
78	COIN BOX ASS WITH C581 SMALL 200198107	COIN BOX ASS WITH C581 AZZZ0ASS006	Part picture
1.78	[COIN BOX ASS WITH C581] BACKBOARD ACRYL	[COIN BOX ASS WITH C581] BACKBOARD ACRYL ABAP0ACP001	Part picture
2.78	[COIN BOX ASS WITH C581] BILLBOARD BACK ACRYL	[COIN BOX ASS WITH C581] BILLBOARD BACK ACRYL ABAP0ACP007	Part picture
3.78	[COIN BOX ASS WITH C581] BILLBOARD FRONT ACRYL	[COIN BOX ASS WITH C581] BILLBOARD FRONT ACRYL ABAP0ACP008	Part picture
4.78	[COIN BOX ASS WITH C581] HR BALL CASE DECO ACRYL	[COIN BOX ASS WITH C581] HR BALL CASE DECO ACRYL ABAP0ACP010	Part picture
5.78	[COIN BOX ASS WITH C581] SPEAKER PANEL ACRYL	[COIN BOX ASS WITH C581] SPEAKER PANEL ACRYL ABAP0ACP013	Part picture
6.78	[COIN BOX ASS WITH C581] BILLBOARD BACKGROUND ACRYL	[COIN BOX ASS WITH C581] BILLBOARD BACKGROUND ACRYL ABAP0ACP014	Part picture
7.78	[COIN BOX ASS WITH C581] FRONT FRAME COVER ACRYL -L	[COIN BOX ASS WITH C581] FRONT FRAME COVER ACRYL -L ABAP0ACP015	Part picture
8.78	[COIN BOX ASS WITH C581] FRONT FRAME COVER ACRYL -CEC ACRYL 5T	[COIN BOX ASS WITH C581] FRONT FRAME COVER ACRYL -CEC ABAP0ACP021	Part picture
79	WELD-CONTROLLER SHAFT ASS'Y .	WELD-CONTROLLER SHAFT ASS'Y ABAP0ASS011	Part picture
80	NOISE FILTER ES1-F10	NOISE FILTER MELE0NOI006	Part picture
81	VOLUME PCB ASS'Y 1 VOLUME	VOLUME PCB ASS'Y AHM20PCB016	Part picture
1.81	[VOLUME PCB ASS'Y] MICRO SW L R SZM-V16-5FA-63	[VOLUME PCB ASS'Y] MICRO SW L R MWIC0PAR022	Part picture
2.81	[VOLUME PCB ASS'Y] BAT COVER ACRYL	[VOLUME PCB ASS'Y] BAT COVER ACRYL ABAP0ACP018	Part picture
82	COUNTER OA127CL W/2P CONNECTOR_20CM WIRE	COUNTER MZZZ0COU002	Part picture
1.82	[COUNTER] HR MOVING SHAFT .	[COUNTER] HR MOVING SHAFT MBAP0PRO013	Part picture
83	BUTTON SWITCH CODE CHANGE AZZZ0BUT011	BUTTON SWITCH MZZZ0BUT054	Part picture
84	PHOTO INT-1 PCB ASS'Y ANGLE TYPE	PHOTO INT-1 PCB ASS'Y AZZZ0PCB103	Part picture
1.84	[PHOTO INT-1 PCB ASS'Y] BUTTON SWITCH 60HR WITHOUT HOLDER	[PHOTO INT-1 PCB ASS'Y] BUTTON SWITCH MZZZ0BUT127	Part picture
85	BUTTON SWITCH AMIPB-60HR-W12D	BUTTON SWITCH AZZZ0BUT011	Part picture
1.85	[BUTTON SWITCH] HOLDER ASS'Y LED 포함	[BUTTON SWITCH] HOLDER ASS'Y MZZZ0BUT128	Part picture
2.85	[BUTTON SWITCH] GROUND 4종 BENCH/OUTFIELD/INFIELD/BAT SHAFT ACR2 7 10 38 39 42 PRI2 3 4 5 6 20	[BUTTON SWITCH] GROUND 4종 BENCH/OUTFIELD/INFIELD/BAT SHAFT ABSP0ACP016	Part picture
3.85	[BUTTON SWITCH] CONTROLLER PANEL/SHAFT COVER ACRYL ACR5 41 PRI 9 19	[BUTTON SWITCH] CONTROLLER PANEL/SHAFT COVER ACRYL ABSP0ACP017	Part picture
4.85	[BUTTON SWITCH] MOUND ACRYL -L/R ACR9 43 PRI11 12	[BUTTON SWITCH] MOUND ACRYL -L/R ABSP0ACP018	Part picture
5.85	[BUTTON SWITCH] MAIN CASE INNER DECO -L/R ACR36 40 PRI16 17	[BUTTON SWITCH] MAIN CASE INNER DECO -L/R ABSP0ACP019	Part picture
86	WEB ACRYL PART BSP WEB	WEB ACRYL PART ABSP0PAT036	Part picture
87	WEB SHEET PART BSP WEB	WEB SHEET PART ABSP0PAT037	Part picture
